Wafer-Level Nanoimprint Lithography System
Technical Features
- Functions: Wafer-level substrate processing, high-fidelity replication, high-precision alignment, low-residue nanoimprinting
- Applications: Semiconductor wafers, microlens arrays, photonic chips, microfluidic chips, optical waveguides

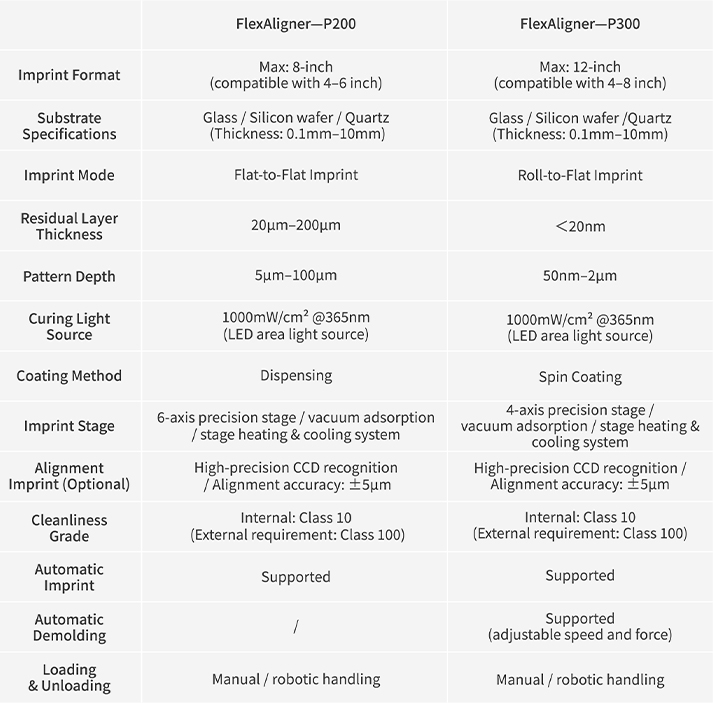

.jpg "images_sheet_1(E)")
